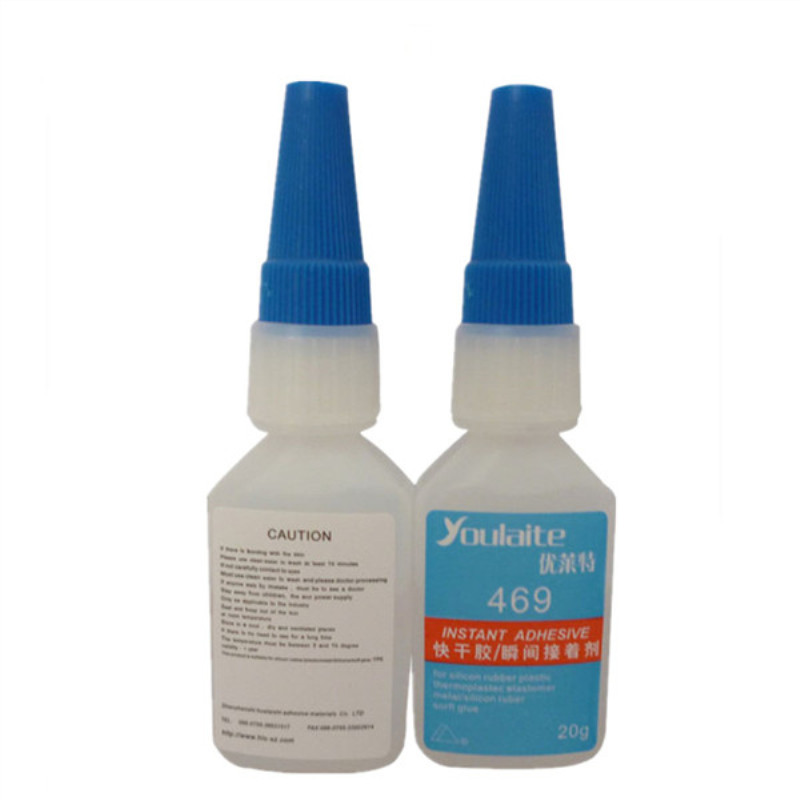

H-469 Quick Dry Adhesive Adhesive Silicone Plastic Metal Non-Bleaching Glue 20g/pc
H-469Metal glue series One.Characteristic:One-component, cures without heat, fas
H-469Metal glue series One.Characteristic:One-component, cures without heat, fas

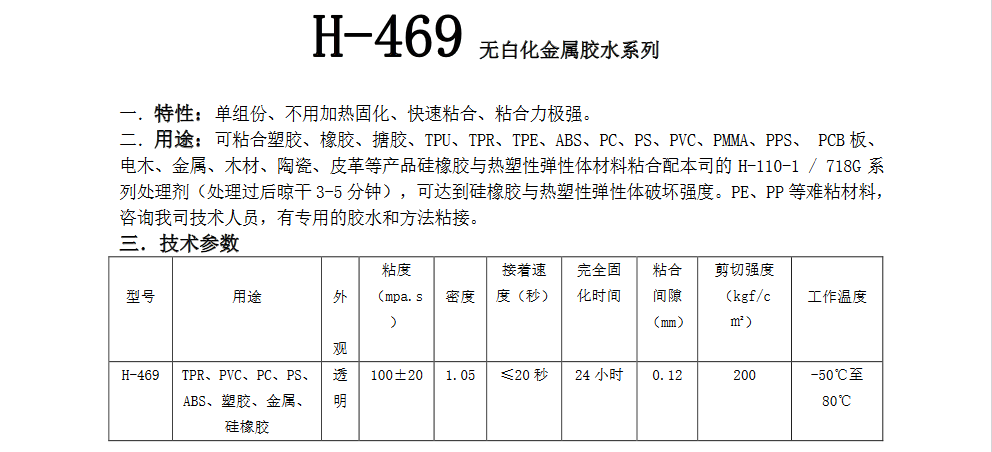

H-469Metal glue series
One.Characteristic:One-component, cures without heat, fast bonding, and has strong adhesion.
Two.Use:Can bond plastic, rubber, enamel,TPU、TPR、TPE、ABS、PC、PS、PVC、PMMA、PPS、 PCBBoard, Bakelite, Metal, Wood, Ceramics, Leather and other products silicone rubber and thermoplastic elastomer materials are bonded with our companyH-780J 718GSeries treatment agent (dry after treatment3-5min), which can achieve the breaking strength of silicone rubber and thermoplastic elastomers.PE、PPand other difficult-to-stick materials, consult our technicians, there are special glues and methods for bonding.
Three. Technical parameters
Model | use | appearance | Viscosity (mpa.s） | density | Adhesion speed (seconds) | Full curing time | Bonding gaps (mm） | Shear strength (kgf/c㎡） | Operating temperature |
H-469 | TPR、PVC、PC、PS、ABS, plastic, metal, silicone rubber | transparent | 100±20 | 1.05 | ≤20second | 24hour | 0.12 | 200 | -50°C to80℃ |

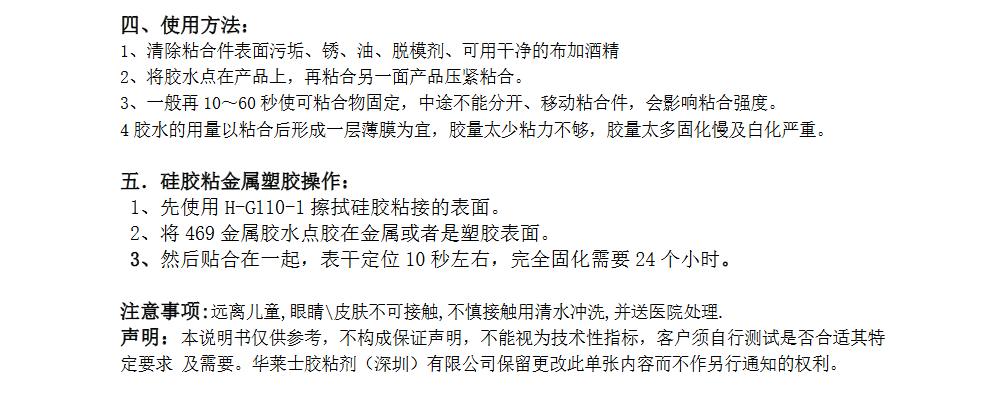

FourHow to use:
1、Remove dirt, rust, oil, release agent from the surface of the adhesive, and use a clean cloth with alcohol
2、Glue is applied to the product, and the other side of the product is pressed to bond.
3、Generally again10～60The adhesive can be fixed in seconds, and the adhesive cannot be separated or moved in the middle, which will affect the bonding strength.
4The amount of glue should form a film after bonding, the amount of glue is too small, the adhesion is not enough, the amount of glue is too much, the curing is slow and the bleaching is serious.
Five.Silicone adhesive metal plastic operation:
1、Use firstH-718GWipe the silicone bonded surface.
2、will469Metal glue is dispensed on metal or plastic surfaces.
3、Then they are glued together and positioned on the surface stem10Seconds or so, complete curing required24Hours.
Notes::Keep away from children,eye\Do not touch the skin,Rinse with clean water if accidentally touched,and sent to the hospital for treatment.
Statement:This manual is for reference only, does not constitute a warranty statement, and cannot be regarded as a technical indicator, and customers must test whether it is suitable for their specific requirements and needs. Wallace Adhesives (Shenzhen) Co., Ltd. reserves the right to change the contents of this leaflet without prior notice.
