H-C049 white thermal conductive silicone grease high thermal conductivity high temperature thermal conductivity thermal conductivity silicone grease thermal conductivity 1.5W/m-k

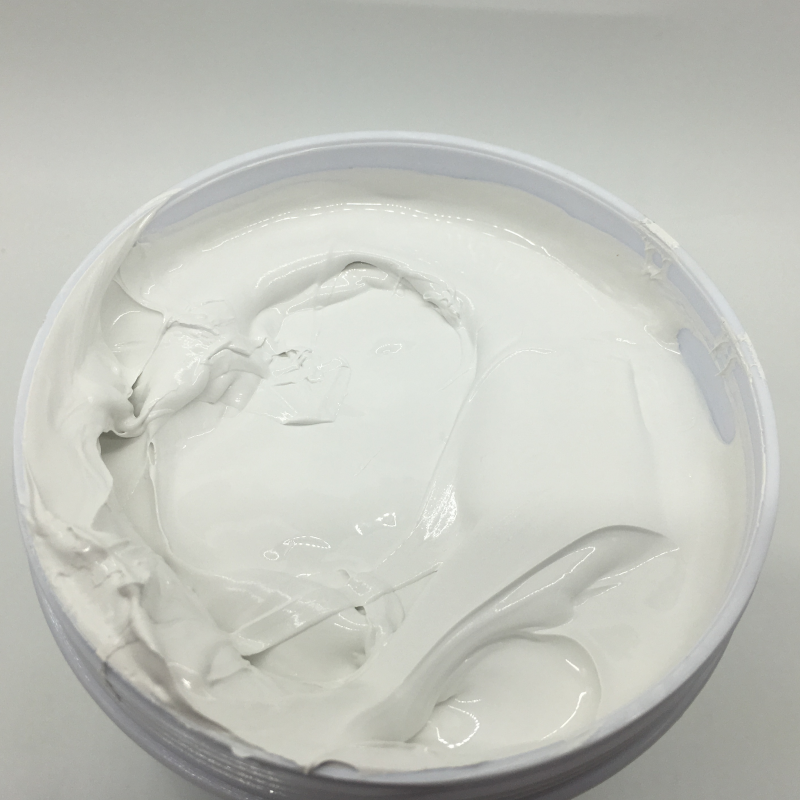

H-C049 White thermally conductive silicone grease

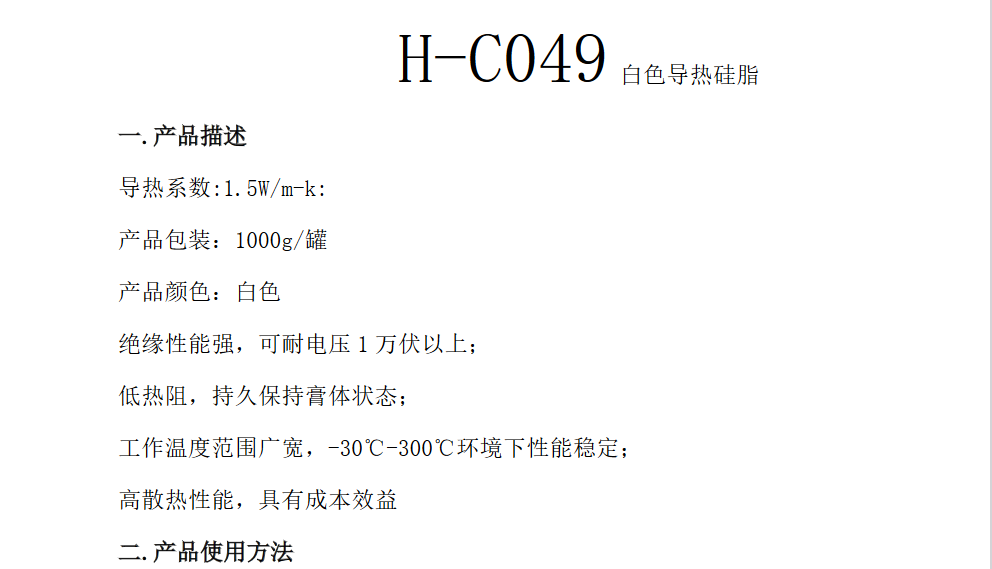

One. Product Description:
Thermal conductivity: 1.5W/m-k:
Product packaging: 1000g/can
Product color: white
strong insulation performance, can withstand voltage of more than 10,000 volts;
low thermal resistance, long-lasting paste state;
Wide operating temperature range, stable performance in -30°C-300°C environment;
High heat dissipation performance and cost-effectiveness

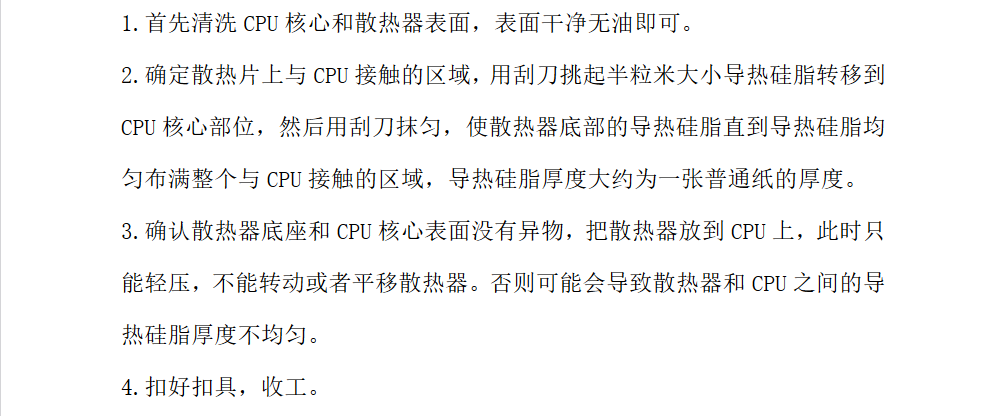

Two. How to use the product
1. First, clean the CPU core and heatsink surface, the surface is clean and oil-free.
2. Determine the area on the heat sink that is in contact with the CPU, use a scraper to pick up half a grain of rice-sized thermal conductive silicone grease and transfer it to the core of the CPU, and then wipe it evenly with a spatula to make the thermal conductive silicone grease at the bottom of the heatsink until the thermal conductive silicone grease is evenly distributed throughout the area in contact with the CPU, and the thickness of the thermal conductive silicone grease is about the thickness of a piece of ordinary paper.
3. Make sure that there is no foreign object on the surface of the radiator base and CPU core, put the heatsink on the CPU, and only press lightly at this time, not rotate or pan the heatsink. Failure to do so may result in uneven thickness of thermal grease between the heatsink and the CPU.
4. Buckle the buckle and call it a day.
